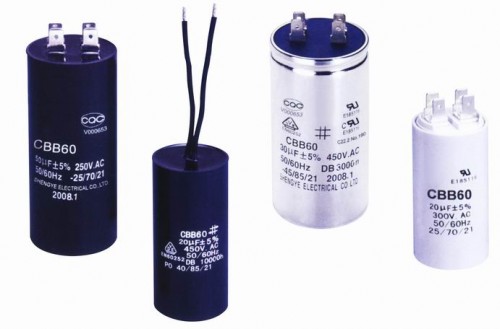

Capacitor CBB60

Enquiry Now

Details

Feature:
Small, light weight, good self-healing, it is widely used as start-up and running capacitor for various AC motor, washing machines, micro water pumps, cleaning machines etc.
Technique Data:
·Climate type:25/70/21
·Capacitance tolerance: +/-5％, +/-10％
·Rated Voltage:250VAC-450VAC
·Rated Frequency:50/60Hz
Testing Voltage:
·Between leading-out: 1.75UR, 10S no breakdown
·Between leading-out end and shell: 2200V AC, 10S no breakdown
Insulation resistance:
·≥3,000 MΩ.uF, Tangent of loss angle: tg∮≤0.002(50HZ)

Capacity ( µF )	250V_AC		450V_AC
	D	H	D	H
3	25	45	25	45
4
5			26	60
6
7			30
8
9	26	60	35
10
12				70
12.5
14	35		40
15
16
18
20
25		70	42	80
30	40			90
31.5	42		45
35				92
40
45		80	50
50
55		90		100
60	45			116
65		92	60
70				120
80
90	50
100
