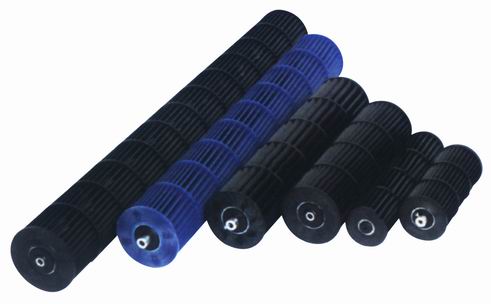

Cross flow fan blade

Enquiry Now

Details

Model No.
Diameter x length
    ( mm )
Diameter distribution form
Number Of The Vanes（Pcs）
Combined parts extension length/mm
Shaft extension length/mm
Material
CW-KGF-001
Ф61×496
Straight partition
31
9.5
27
GFAS
CW-KGF-002
Ф76×300
Straight partition
35
10
17
GFAS
CW-KGF-003
Ф77×421.8
Straight partition
32
13.5
23
GFAS
CWKGF-004
Ф77×660
Straight partition
32
13.5
23
GFAS
CW-KGF-005
Ф81×262
Straight partition
35

14
GFAS
CW-KGF-006
Ф85×596
Straight partition
35
23
30
GFAS
CW-KGF-007
Ф88×450
Straight partition
35
13.5
35
GFAS
CW-KGF-008
Ф88×530
Straight partition
35
13
35
GFAS
CWKGF-009
Ф88.8×656
Straight partition
35
13.5
25
GFAS
CW-KGF-010
Ф88×800
Straight partition
35
13
35
GFAS
CW-KGF-011
ф90×458
Straight partition
35
13.5
20
FGAS
CW-KGF-012
ф90×490
Straight partition
40
13.5
20
GFAS
CW-KGF-013
ф90×610
Vary and divide obliquly
35
13.5
23
GFAS
CWKGF-014
 ф90×630（631）
Straight partition
35
13
23
GFAS
CW-KGF-015
ф90×634
Instead Vary and divide obliquly
35
13.5 in and out
21
GFAS
CW-KGF-016
ф91×580
Straight partition
35
13.5
22.5
GFAS
CW-KGF-017
ф91×584
Vary and divide obliquly
35
13.5
20
GFAS
CW-KGF-018
ф91×632
Straight partition
35
13 in and out
21
GFAS
CWKGF-019
ф93×490
Straight partition
40
25
25
GFAS
CW-KGF-020
ф93×580
Instead Vary and divide obliquly
35
13.5 in or out
23
GFAS
CW-KGF-021
ф93×592
Vary and divide obliquly
35
12.5
22.5
GFAS
CW-KGF-022
ф93×612
Vary and divide directly
35
12.5 in
22
GFAS
CW-KGF-023
ф93×633

32
11
21
GFAS
CWKGF-024
ф93×650
Instead Vary and divide obliquly
35
13.5
22
GFAS
CW-KGF-025
ф93×734
Straight partition
40
13.5
21
GFAS
CW-KGF-026
ф94×513
Straight partition
35
14.5
25
GFAS
CW-KGF-027
ф94×580
Vary and divide directly
35
13.5 in and out
25
GFAS
CW-KGF-028
ф94×611
Straight partition
35
13.5
23
GFAS
CWKGF-029
ф95×609.5
Vary and divide directly
35
36
23
FGAS
CW-KGF-030
ф95×685.5
Vary and divide directly
35
36 two sides
23
GFAS
CW-KGF-031
ф96×574.5
Vary and divide directly
35
33
23.5
GFAS
CW-KGF-032
ф96×600
Straight partition
41
13.5 in and out
23
GFAS
CW-KGF-033
ф96×610
Straight partition
41
28 two sides
23
GFAS
CWKGF-034
ф96×617
Vary and divide directly
35
26
28 two sides
GFAS
CW-KGF-035
ф96×632
Straight partition
41
12.5
23
GFAS
CW-KGF-036
ф96×642
Vary and divide directly
35
13.5
25
GFAS
CW-KGF-037
ф96×704
Vary and divide directly
35
13.5
23
GFAS
CW-KGF-038
ф96×713
Straight partition
41
13.5
23
GFAS
CWKGF-039
ф97×488
Straight partition
35
26
27
GFAS
CW-KGF-040
ф97×582.9
Vary and divide obliquly



GFAS
CW-KGF-041
ф97×582
Vary and divide obliquly
35
25
28
GFAS
CW-KGF-042
ф97×598
Vary and divide obliquly
35
14.5
23
GFAS
CW-KGF-043
ф97×599
Vary and divide obliquly
35
14.5
22
GFAS
CWKGF-044
ф97×610
Instead Vary and divide obliquly
35
13.5 in
23
GFAS
CW-KGF-045
ф97×615
Vary and divide obliquly
35
26
26
GFAS
CW-KGF-046
ф97×617
Vary and divide obliquly
35
33
23
GFAS
CW-KGF-047
ф97×634
Vary and divide obliquly
35
13.5
23
GFAS
CW-KGF-048
ф97×642
Vary and divide obliquly
35
13.5
26
GFAS
CWKGF-049
ф97×650
Instead Vary and divide obliquly
35
11
26
GFAS
CW-KGF-050
ф97×655
Vary and divide directly
35
27
26
FGAS
CW-KGF-051
ф97×664 (664.5)
Vary and divide obliquly
35
25
26
GFAS
CW-KGF-052
ф97×668
Straight partition
35
27
23
GFAS
CW-KGF-053
ф97.4×684
Straight partition
35
28 two sides
23.5
GFAS
CWKGF-054
ф97×685
Vary and divide obliquly
35
26
26
GFAS
CW-KGF-055
ф97×713
Vary and divide obliquly
35
13.5
26
GFAS
CW-KGF-056
ф97×772
Vary and divide obliquly
35
13.5
26
GFAS
CW-KGF-057
ф97×911
Straight partition
35
19.5
23.5
GFAS
CW-KGF-058
Ф98×424
Straight partition
35
41
13.5
GFAS
CWKGF-059
Ф98×622
Straight partition
35
23.5
13.5
GFAS
CW-KGF-060
ф98×644
Vary and divide obliquly
35
13.5
27
GFAS
CW-KGF-061
ф100×250
Vary and divide obliquly
35
13.5
25
GFAS
CW-KGF-062
ф100×310
Vary and divide obliquly
35
13.5
23
GFAS
CW-KGF-063
ф100×615
Vary and divide obliquly
35
27
25
GFAS
CWKGF-064
ф100×655
Vary and divide obliquly
35
27
25
GFAS
CW-KGF-065
ф100×803
Straight partition
33
14.5
20
GFAS
CW-KGF-066
ф101×530
Straight partition
35
14.5
20
GFAS
CW-KGF-067
ф101×530
Straight partition
35
13
35
GFAS
CW-KGF-068
ф101×600
Straight partition
35
14.5
20
GFAS
CWKGF-069
ф101×615
Inclined Various part
35
27
25
FGAS
CW-KGF-070





GFAS
CW-KGF-071
ф101×762
Straight partition
35
19.5
28
GFAS
CW-KGF-072
ф101×832
Vary and divide directly
35
13.5
28
GFAS
CW-KGF-073
ф102×617
Vary and divide obliquly
35
15.5
24
GFAS
CWKGF-074
ф102×707
Straight partition
35
13．5
25
GFAS
CW-KGF-075
ф102×850
Straight partition
35
14.5
33
GFAS
CW-KGF-076
ф106×255
Vary and divide directly
35
13.5 in
23
GFAS
CW-KGF-077
ф106×480
Straight partition
35
13.5
23
GFAS
CW-KGF-078
ф106×617
Vary and divide directly
35
12.5 in
23
GFAS
CWKGF-079
ф106×642
Straight partition
35
13.5
26
GFAS
CW-KGF-080
ф107×400
Straight partition
35
19.5
22
GFAS
CW-KGF-081
ф107×612
Vary and divide directly
35
14.5 in
23
GFAS
CW-KGF-082
ф107×678
Vary and divide obliquly
35
20
21
GFAS
CW-KGF-083
ф107×897
Straight partition
35
13.5
28
GFAS
CWKGF-084
ф107×1014
Straight partition
35
28
25
GFAS
CW-KGF-085
ф121×242
Straight partition
35
13.5
25
GFAS
CW-KGF-086
ф122×289
Vary and divide obliquly
35
13.5
28
GFAS
CW-KGF-087
ф122×360

32
11
21
GFAS
