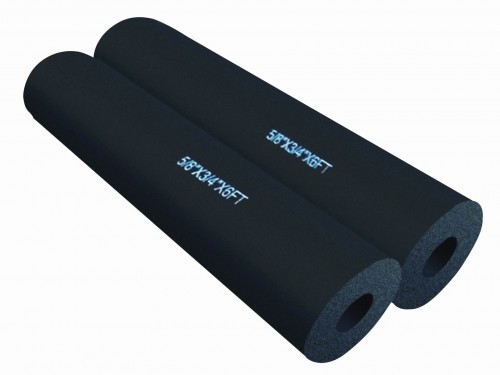

Insulation pipe

Enquiry Now

Details

ID:  from 1/4" , 3/8" , 1/2"  , 5/8" , 3/4" , 7/8" , 1"... to 3-3/4" ...etc

Thickness:  from 3/8" , 1/2" , 3/4", 1" , 1-3/8" ,...etc

length : 6FT ( 1.83 meter ) , 2.0 meter , or any length designed.



PERFORMANCE
UNIT
CONDITIONS AND PARAMETERS
APPEARANCE

BLACK,SURFACING
SYNTACTIC FOAM

closed-cell
MATERIAL TYPE

CLASS I
DENSITY
kg/m3
40-90
THERMAL CONDUCTIVITY
W/(M.K)
average temperature-20℃,0.031
average temperature-0℃,0.034
average temperature40℃,0.038
WATER VAPOR PERMEABILITY
G/(M.S.PA )
≦4.0X10-11
WATER PREVENT

≧5.0X103
WATER ABSORPTION
≦8
COMBUSTIBILITY

CLASS B1
DXYGEN INDEX
≧38
COMBUSTION

carbonize,Unshrinkable,no molten drop



SMOKE TOXICITY

ACCORDS WITH CLASS ZA3,EXECELLENT
 measurement stability
10.5℃±3℃, 7D,≦8
TEAR STABILITY
N/CM
≧8
 COMPRESS RESILIENCE
COMPRESS 50% FOR 72H,RETRACT≥70%
RESISTANCE TO

202MPA, 200H, NO CRACKS
RESISTANCE TO AGING

150H,SLIGHT TOFFERS,NO CRACKS,HOLES AND DISTORTION
SUITABLE
-150
